Welding Rotators & Turning Rolls

Description

Welding Rotators & Turning Rolls

ABK supplies industrial-grade welding rotators and turning rolls for continuous heavy-duty use across diverse environments—from small precision workshops to large manufacturing plants. Backed by 16 years of specialized experience in welding auxiliary equipment, we offer standard off-the-shelf models and fully custom solutions to meet the unique needs of global workshops, engineering firms, and industrial projects. Meticulously tailored for fabricating pressure vessels, wind towers, pipelines, storage tanks, and other cylindrical/conical workpieces, our products help clients improve weld quality, enhance operational safety, and reduce labor intensity—even in harsh high-temperature, high-humidity, or dust-intensive conditions. Focused on real-world production demands, we prioritize stable performance, easy maintenance, and durability to minimize equipment downtime and boost productivity for our global partners, many of whom have collaborated with us for over a decade.

Product Overview

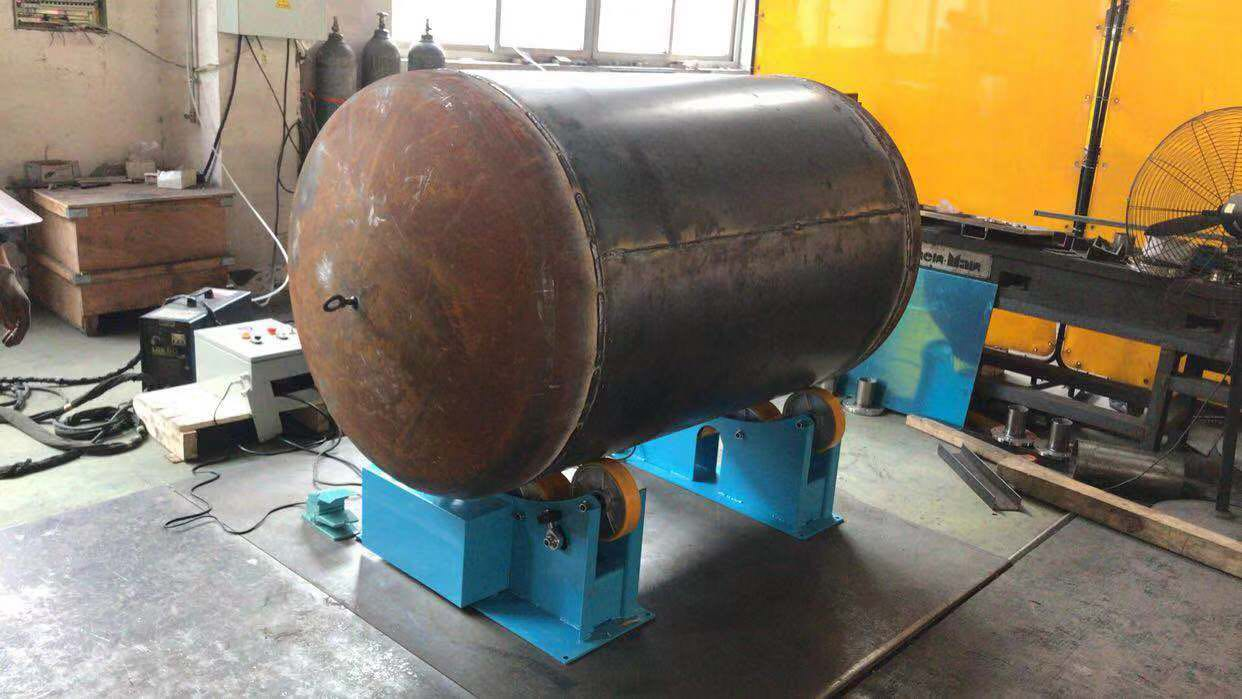

Welding rotators (also called turning rolls) are indispensable auxiliary equipment for cylindrical or conical workpiece fabrication across industries. They provide stable workpiece support and controlled rotation during key processes—welding, sandblasting, painting, and non-destructive testing (NDT)—directly impacting production efficiency, product quality, and on-site safety, making high-quality rotator selection critical for manufacturers.

Powered by roller-workpiece friction, our rotators eliminate manual repositioning, reducing labor intensity, operator fatigue, and human error. All ABK rotators feature industrial-grade reinforced steel frames (with strict stress relief to prevent heavy-load deformation), inverter-driven stepless speed regulation for flexible adaptation to workpiece sizes and processes, and three roller material options: rubber/PU (for scratch protection on delicate surfaces) and steel (for heavy-duty, high-temperature, wear-resistant applications).

All units are CE and ISO 9001 certified, complying with global safety and quality standards for international projects. Fully compatible with mainstream automated welding systems (SAW, TIG, MIG, welding manipulators), they seamlessly integrate into any production line—small-batch, semi-automated, or fully automated—protecting existing equipment investments. Engineered for long service life, key components use high-quality imported materials to minimize wear and reduce maintenance.

Types of Welding Rotators

ABK offers four core series of welding rotators, each independently designed and optimized for specific production scenarios, workpiece types, and process requirements. Below is a detailed breakdown of each series, including their unique features, technical parameters, and typical applications, to help you choose the most suitable model for your operations and maximize production efficiency.

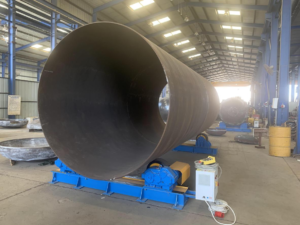

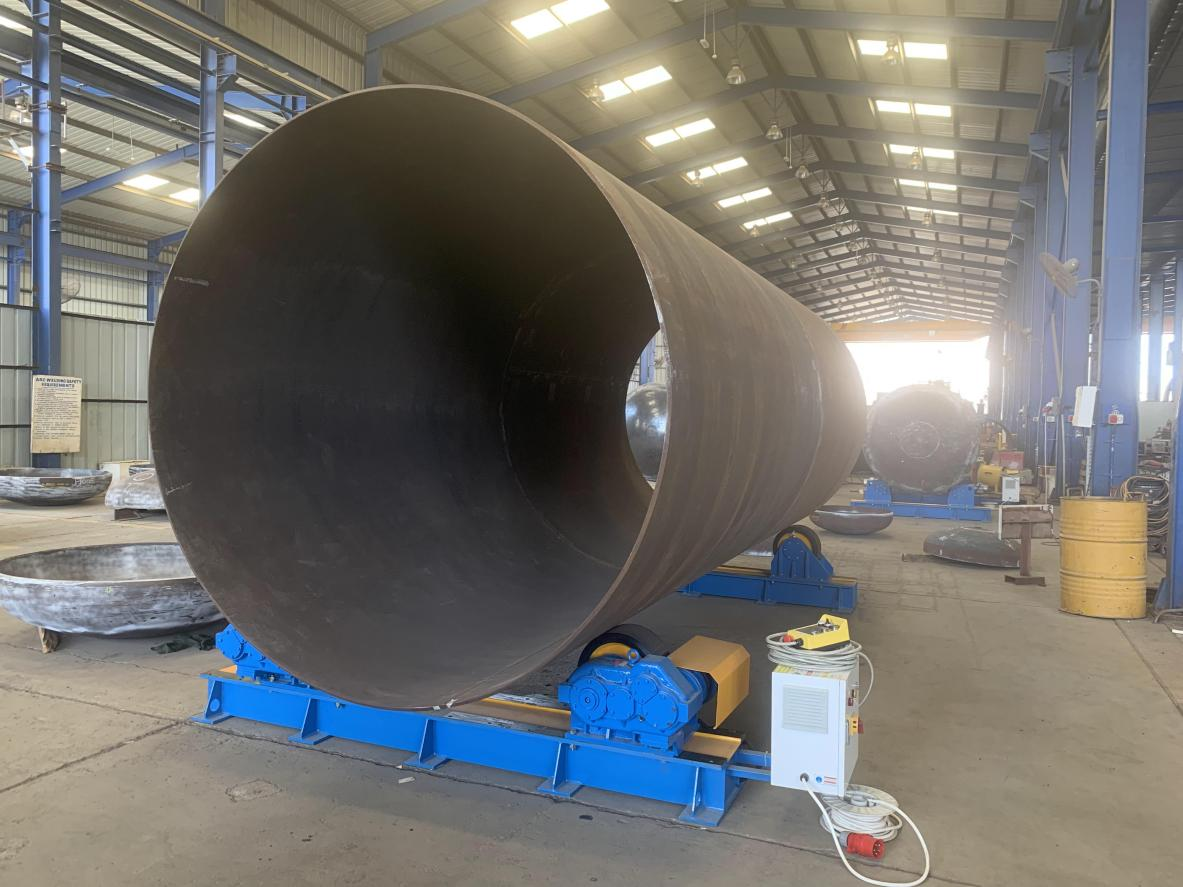

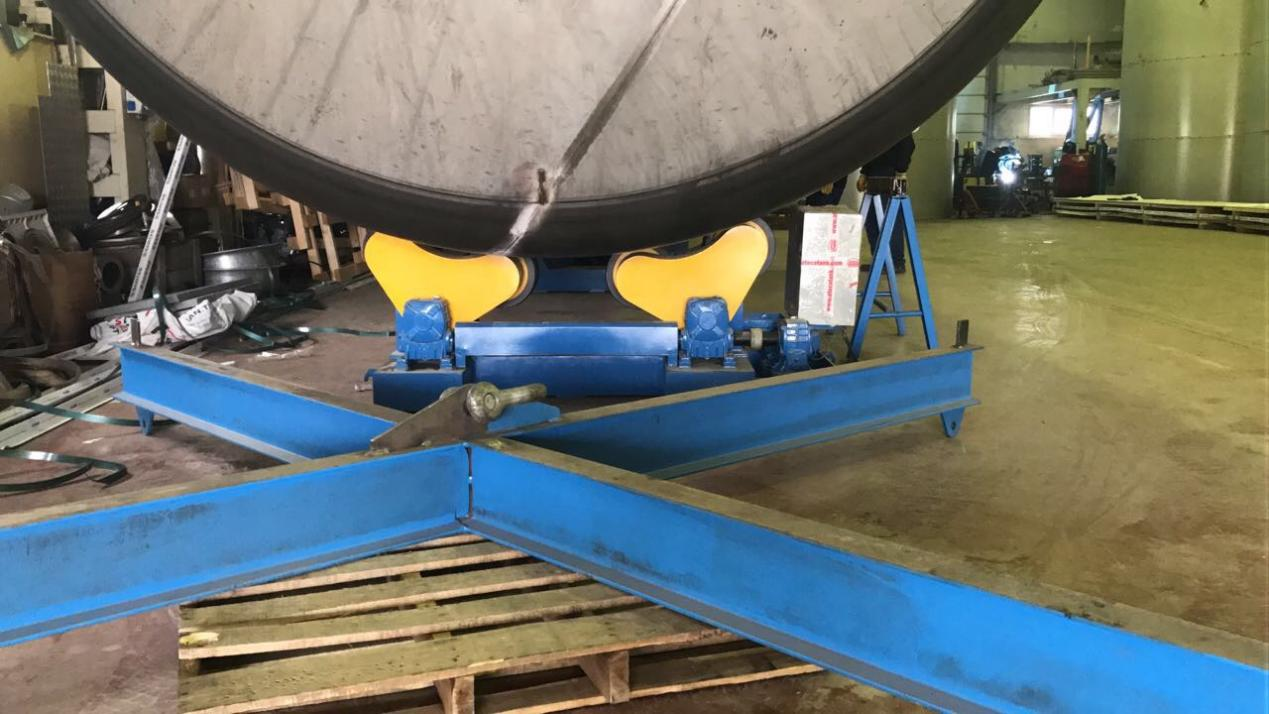

1. Self‑Aligning Welding Rotators

Self-aligning rotators are designed for production lines with frequent workpiece diameter changes, such as mixed-batch production of wind tower segments, pressure vessels, or heat exchangers. Their pivoting roller assembly features a built-in automatic adjustment mechanism that quickly adapts its swing angle to different workpiece sizes, eliminating time-consuming manual bolt adjustments. This “drop-and-weld” design streamlines operations, cuts setup time by up to 40%, and boosts efficiency for mixed-batch or small-batch production. Their compact design saves workshop space, ideal for busy, space-constrained environments.

Core technical features

• Four-point contact structure ensures even load distribution, effectively preventing deformation of thin-walled workpieces (e.g., thin-walled pressure vessels, precision pipes) during rotation.
• Special surface-treated high-traction rollers minimize welding slippage, ensuring stable rotation even under full load or uneven weight distribution.
• Imported inverter control system enables precise speed regulation (error ≤ ±1%), seamlessly matching different welding speeds and processes for consistent performance.
• 50-meter wireless remote control enhances operator safety (keeps away from high-temperature areas and fumes) and operational convenience.
• Compact, durable structure with corrosion-resistant coating adapts to harsh workshop environments, supporting long-term continuous use with minimal maintenance.

Typical applications: Onshore/offshore wind tower segments, pressure vessels (boilers, reactors, heat exchangers), large-diameter steel pipes, and precision cylindrical workpieces requiring frequent diameter adjustments.

Model	Load Capacity (T)	Workpiece Diameter (mm)	Roller Diameter (mm)	Roller Speed (rpm)	Motor Power (KW)
ZT-6	6	200–1800	200	0.5–15	1.1
ZT-10	10	500–3000	250	0.5–15	2.2
ZT-20	20	600–3500	300	0.5–15	3.0
ZT-50	50	1000–4500	400	0.5–15	5.5

Note: All parameters can be customized based on your specific workpiece size, load requirements, and process needs—including roller material, motor power, speed range, and control mode—to perfectly match your production line.

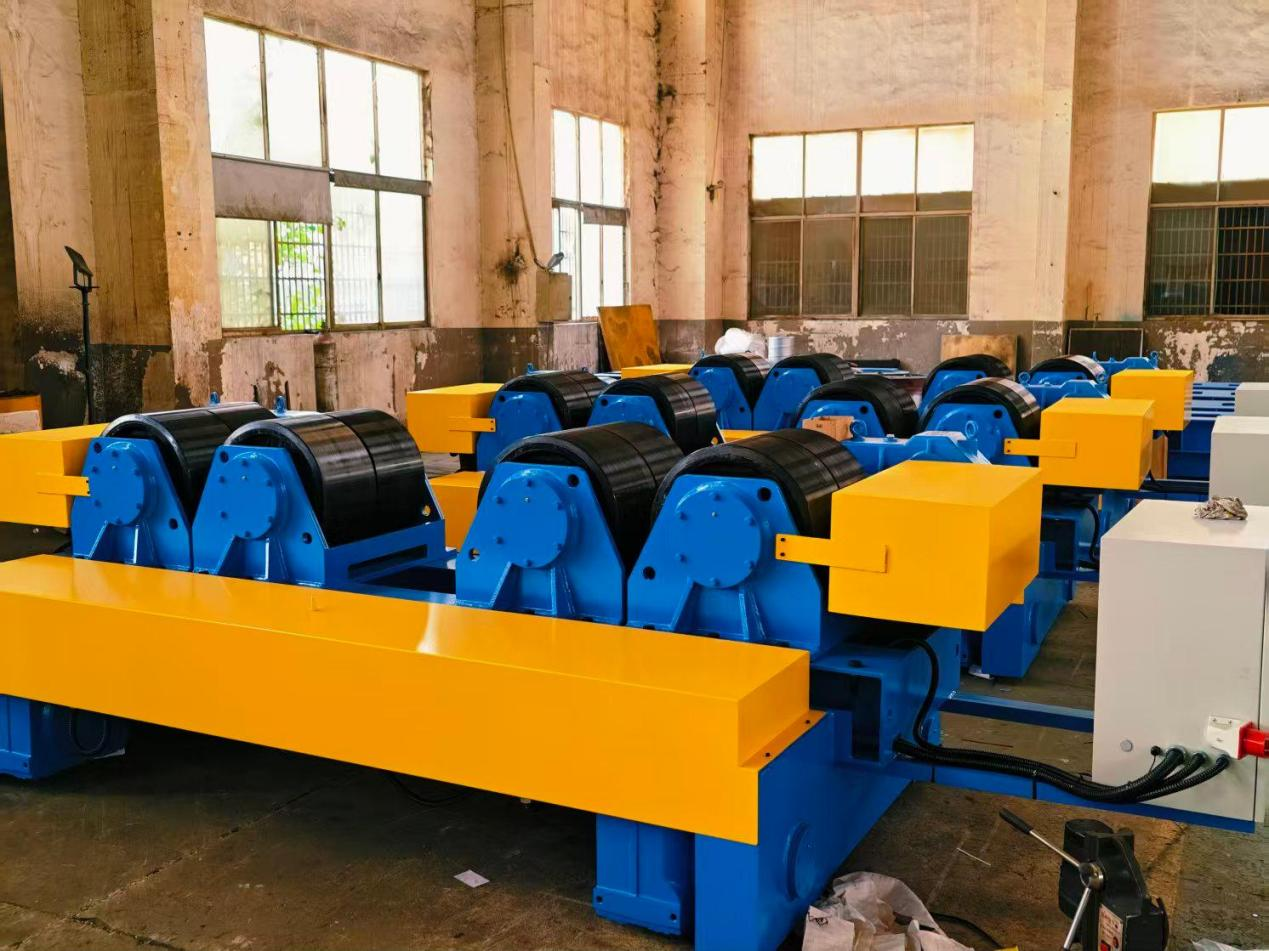

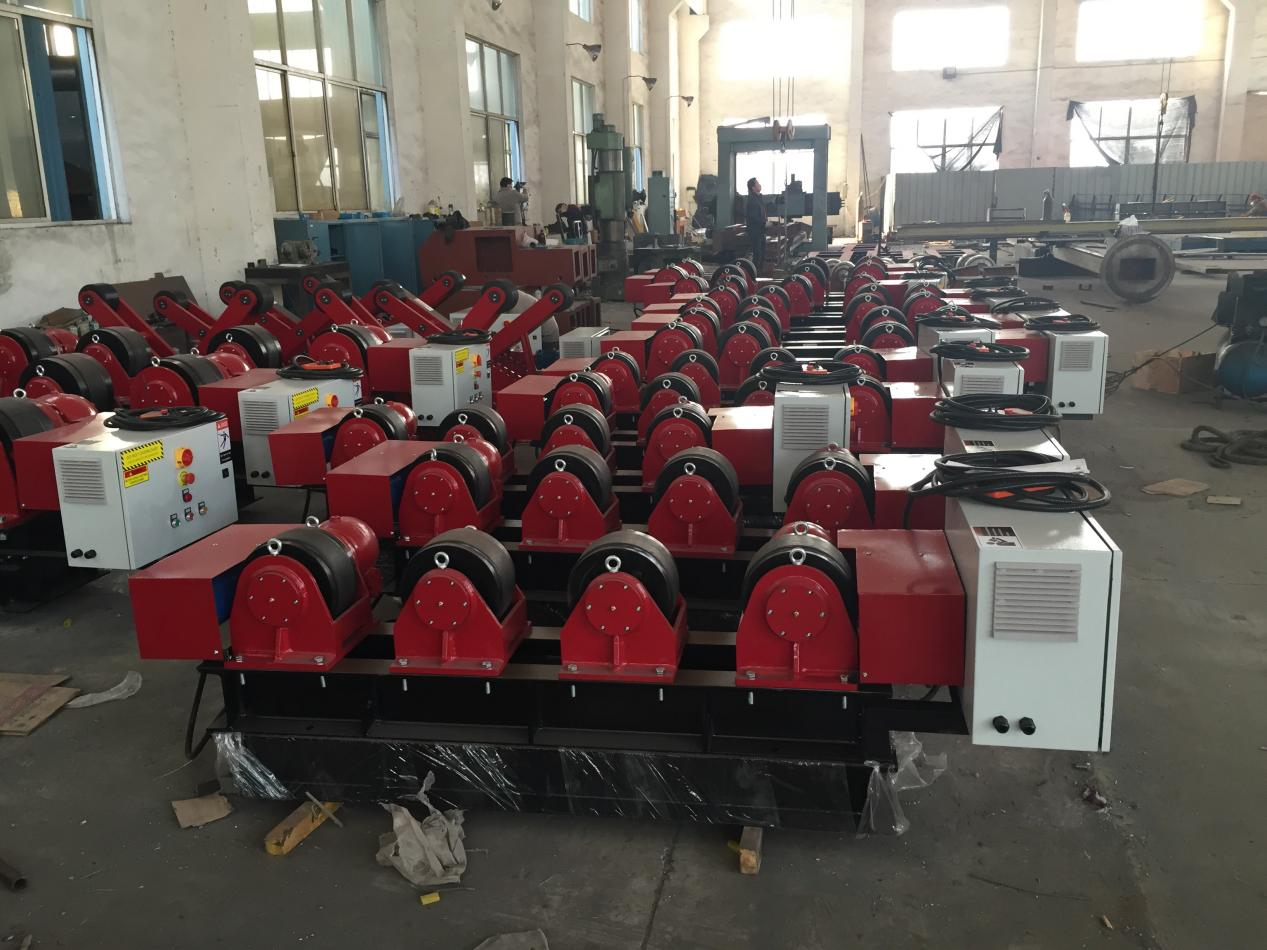

2. Adjustable Turning Rolls

Adjustable turning rolls are engineered for heavy-duty applications with large, long, or irregular cylindrical workpieces—such as large storage tanks, heavy structural steel, and offshore pipeline segments. Their roller spacing can be adjusted manually (for small-scale operations) or via lead screw drive (for high-precision, large-scale use), ensuring versatility across different workpiece diameters and lengths. Built with ultra-strong load-bearing capacity to handle heavy loads without deformation, they deliver long-term stability and reliability in harsh industrial environments (shipyards, petrochemical plants, heavy machinery factories). The reinforced steel frame undergoes strict stress relief and heat treatment to enhance rigidity, reduce vibration, and extend service life—even for 24-hour continuous operation.

Core technical features

• Reinforced frame structure made of high-strength Q355 steel, which resists deformation and fatigue during long-term heavy-load operation, ensuring stable performance even under extreme working conditions.
• Multiple roller material options (rubber, steel, PU) to protect different workpiece surfaces from damage: rubber rollers for delicate surfaces, steel rollers for high-temperature and heavy-duty applications, and PU rollers for a balance of protection and wear resistance.
• Supports manual, remote, or PLC control to match your workshop’s automation level—PLC control allows for integration with fully automated production lines, enabling centralized control and real-time speed adjustment.
• Mature manufacturing processes, including precision machining and strict quality inspection of key components (such as rollers, motors, and inverters), ensure consistent performance and minimal maintenance, reducing operational costs.
• Stable base design with anti-slip pads and reinforced fixing points prevents vibration during rotation, which not only improves welding accuracy but also enhances on-site safety by avoiding workpiece displacement.

Typical applications: Large storage tanks (oil, water, chemical storage), heavy structural steel components, offshore pipeline segments, large-diameter cylindrical workpieces, and other heavy-duty industrial products.

Model	Load Capacity (T)	Workpiece Diameter (mm)	Roller Spacing Adjustment (mm)	Roller Speed (rpm)	Control Mode
AD-10	10	300–2000	500–1200	0.5–12	Manual
AD-30	30	600–3000	800–1800	0.5–12	Remote
AD-60	60	1000–4000	1000–2200	0.5–10	PLC

Note: Custom adjustments are available for special workpiece dimensions (such as extra-long or extra-large diameter), control needs (such as dual-speed control or remote monitoring), and working environment requirements (such as corrosion resistance or high-temperature resistance).



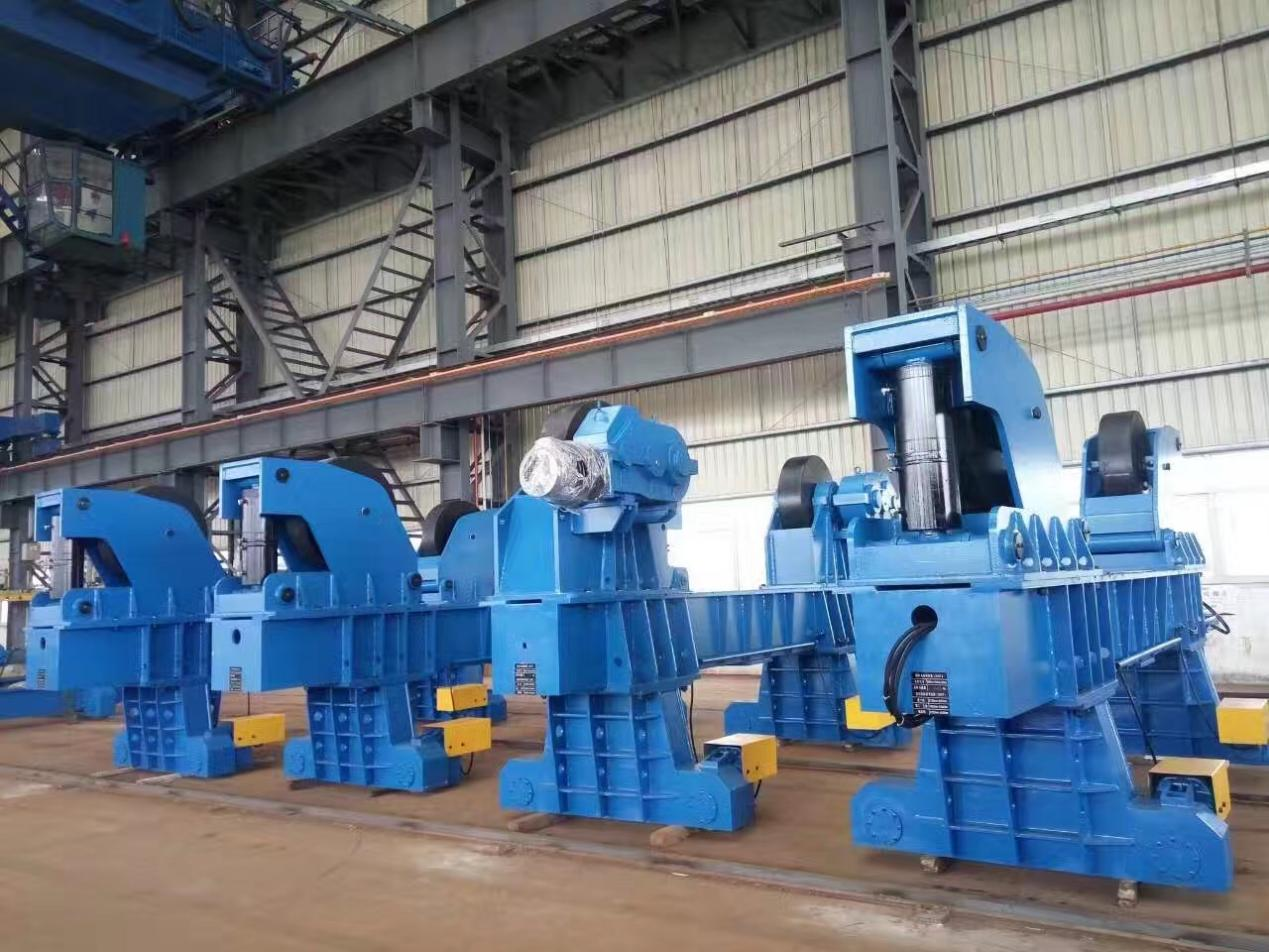

3. Pipe Pinching Rotators

Pipe pinching rotators are specialized for high-precision welding applications requiring strict concentricity and stability, such as nuclear pipes, high-pressure pipelines, precision pipe spools, and aerospace cylindrical components. Their advanced pneumatic clamping system enables accurate axial workpiece centering, eliminating manual centering and cutting setup time by up to 35% vs. traditional rotators. Engineered to meet high-end engineering tolerance requirements (concentricity error < 0.1mm/m), they ensure consistent weld quality and product structural integrity, widely used in high-safety, high-precision industries like nuclear power, aerospace, and high-pressure equipment manufacturing.

Core technical features

• Pneumatic centering with adjustable clamping force ensures precise axial alignment, cutting setup time by up to 35% vs. manual adjustment and avoiding human-induced centering errors.
• High-precision assembly and strict quality control—key components are CNC-machined, and the entire unit undergoes rigorous testing to meet nuclear and pressure pipeline industry standards.
• Remote + pneumatic control allows safe, efficient adjustment of clamping force and rotation speed from a distance, ideal for high-precision or high-risk welding environments.
• 5T–100T load capacity, compatible with a wide range of pipe sizes (from small precision pipes to large nuclear pipes) for diverse high-precision projects.
• Stable clamping force with pressure feedback prevents workpiece displacement during welding—even under high-speed rotation or uneven loads—guaranteeing weld quality and precision.

Typical applications: Nuclear pipe systems (primary/secondary circuits), high-pressure precision pipelines (petrochemical, aerospace), precision pipe spools, and other high-precision cylindrical workpieces requiring strict concentricity and stability.

Model	Load Capacity (T)	Workpiece Diameter (mm)	Clamping Force (KN)	Roller Speed (rpm)	Control Mode
PP-5	5	200–1000	50	0.5–15	Remote + Pneumatic
PP-30	30	800–3000	150	0.5–12	Remote + Pneumatic
PP-100	100	2000–5000	300	0.5–10	Remote + Pneumatic

Note: Parameters can be customized for high-precision engineering projects, including clamping force range, rotation speed accuracy, concentricity tolerance, and control system functions (such as real-time monitoring and data recording).



4. Blasting/Painting Rotators

Blasting/painting rotators are purpose-built for cylindrical workpiece surface treatment, including sandblasting, shot blasting, and anti-corrosion painting. Their passive roller structure—driven by the workpiece’s weight and external force—ensures stable, damage-free rotation, delivering uniform surface treatment and eliminating uneven results from manual rotation. Simple to operate and low-maintenance, they are engineered to withstand harsh surface treatment workshop environments (high dust, humidity, and corrosive materials), with an anti-static design that eliminates sparks and static buildup—critical for safety in dust-intensive settings.

Core technical features

• Passive, smooth-surface rollers protect workpieces from scratches during treatment, especially delicate or painted surfaces, avoiding damage from active roller friction.
• Adjustable constant rotation speed ensures even coating and sandblasting, no uneven areas or missed spots, enhancing workpiece surface finish and corrosion resistance.
• Anti-static design (surface resistance ≤ 10^8 Ω) prevents dust-igniting sparks, complying with industrial safety standards for dust-intensive workshops.
• Intuitive fixed-speed control panel simplifies operation, requiring no professional training, reducing labor costs and boosting efficiency.
• Wear-resistant rubber/PU roller coating resists sand, paint particles, and corrosion, extending roller service life and reducing maintenance.

Typical applications: Sandblasting shops, anti-corrosion coating lines, and surface treatment workshops for steel pipes, storage tanks, and other cylindrical workpieces requiring uniform surface treatment.

Model	Load Capacity (T)	Workpiece Diameter (mm)	Roller Coating	Fixed Speed (rpm)	Application
BP-5	5	300–1500	Rubber	2	Blasting/Painting
BP-10	10	500–2000	Rubber	2	Blasting/Painting
BP-20	20	800–2800	PU	1.5	Blasting/Painting

Note: Roller material and speed can be customized for special surface treatment processes—such as high-speed sandblasting, high-gloss painting, or corrosion-resistant surface treatment—to meet your specific process requirements.

How Turning Rolls Work

ABK welding rotators adopt a reliable friction-drive mechanism—widely recognized as the most stable and efficient method for cylindrical workpiece rotation. The system consists of two core parts: a drive unit (powered roller) and an idler unit (passive roller), positioned at a scientifically calculated distance for stable workpiece support. The distance between the two units is flexibly adjustable based on workpiece length and diameter, ensuring balanced support and preventing tilting or displacement, especially for long or heavy workpieces.

When activated, the drive motor (equipped with a reducer) transmits torque to the powered roller, generating friction with the workpiece to drive smooth, controlled rotation—no slippage or speed fluctuations. This stability allows operators to maintain a fixed position, improving weld/surface treatment quality while reducing fatigue and labor intensity. The inverter-driven speed control (0.5–15 rpm, model-dependent) enables precise regulation, seamlessly matching welding, sandblasting, and painting processes. Even under full load, rotation speed remains stable to ensure consistent product quality.

Key operational features

• Inverter stepless speed regulation with precise speed control (error margin ≤ ±1%) adapts to different welding and surface treatment processes, allowing operators to adjust the rotation speed according to specific process requirements.
• Self-aligning models are equipped with an automatic adjustment mechanism that can quickly adapt to workpiece diameter changes, eliminating manual setup and reducing downtime between batches.
• Remote control (wireless or wired) keeps operators away from high-temperature welding areas, welding fumes, and dust-intensive surface treatment environments, significantly enhancing on-site operational safety.
• All units are designed for 24-hour continuous operation with a 1.5× nominal load safety factor—this means a rotator with a nominal load of 10T can safely handle workpieces up to 15T, ensuring operational safety and reliability even in peak production periods.
• Low energy consumption design (adopting high-efficiency motors and energy-saving inverters) and minimal maintenance requirements (key components have a service life of over 5 years) reduce long-term operational costs for our clients.
• Low noise design (noise ≤ 75dB) creates a more comfortable working environment for on-site staff, complying with global industrial noise standards and improving staff satisfaction.

Load Capacity Range

ABK rotators cover all load grades to support small workshops, medium-sized manufacturing plants, and super-heavy industrial projects. Every unit is built for continuous operation with a 1.5× nominal load safety factor, ensuring safety and reliability even in extreme conditions. Our load range covers nearly all cylindrical workpiece processing scenarios—from small precision pipes to super-sized offshore wind tower segments—providing a one-stop solution for diverse client needs.

• Lightduty (1–10T):Suitable for small pipes, fittings, cylinders, and precision components. Compact, mobile (with universal wheels), and cost-effective, they are ideal for small-scale operations, maintenance workshops, and small-batch precision production—easy to install and operate without professional personnel.
• Mediumduty (10–50T):Ideal for pressure vessels (boilers, reactors, heat exchangers), medium storage tanks, wind tower segments, and large-diameter steel pipes. The most widely used grade for standard production lines, it balances performance, cost, and versatility,适配 semi-automated/fully automated lines and customizable for different processes.
• Heavyduty (50–200T):Designed for large pressure vessels, offshore pipelines, heavy structural steel, and large storage tanks. Featuring reinforced high-strength alloy steel frames, high-load-bearing rollers, and stable drive systems, they withstand extreme loads in harsh environments (shipyards, petrochemical plants, offshore sites) and support 24-hour continuous operation for long-term stability.
• Ultraheavy custom (200–1000T):Custom-built for 100m+ offshore wind towers, nuclear components, and ≥10m diameter super-sized storage tanks. Equipped with high-strength alloy materials, synchronized multi-drive systems, and advanced control systems, they handle extreme loads and meet ultra-large-scale project requirements—each model is tailored to client-specific workpiece parameters and environments.

Industries & Applications

ABK rotators are widely used in cylindrical workpiece manufacturing across multiple industries, thanks to their stable performance, high compatibility, and fully customizable design. They have become a trusted choice for industrial clients worldwide, with our equipment deployed in more than 30 countries and regions, including China, the United States, Germany, Australia, and Southeast Asian countries. Our clients cover a wide range of industries, and we have earned consistent positive feedback for the reliability, durability, and cost-effectiveness of our products—many of our clients have maintained long-term cooperation with us for over 5 years.





Main Application Industries

• Pressure Vessel Industry:Used for fabricating boilers, reactors, heat exchangers, and oil/water/chemical storage tanks. Our rotators ensure uniform weld quality, prevent workpiece deformation, comply with strict standards (ASME, GB150), and help clients pass product certification and market access inspections.
• Wind Power Industry:Applied to onshore/offshore wind tower segments, flanges, and key components. Our self-aligning and adjustable rotators ensure dimensional accuracy and structural stability, reducing welding defects and boosting efficiency—critical for the industry’s high-volume, high-precision production needs.
• Petrochemical Industry:Suitable for oil/gas pipelines, large storage tanks, and chemical equipment. Corrosion-resistant rollers (anti-corrosion steel/PU) adapt to harsh, high-humidity, corrosive environments, ensuring long-term stable operation and avoiding equipment failure.
• Shipbuilding Industry:Used for welding marine pipes, cylindrical parts, offshore platform components, and hull structures. Our heavy-duty rotators provide stable support for large marine components, improving efficiency and ensuring structural strength to meet the industry’s strict safety requirements.
• Nuclear Power Industry:Special pipe pinching rotators meet strict precision/safety standards for nuclear pipe/vessel welding. They ensure high concentricity and stable rotation, comply with nuclear standards (RCC-M), and have been successfully applied in global nuclear power projects.
• Surface Treatment Industry:Blasting/painting rotators deliver uniform sandblasting and coating, enhancing workpiece surface finish and corrosion resistance. Widely used in surface treatment workshops for steel pipes, storage tanks, and cylindrical workpieces, reducing labor and improving efficiency.

Typical Application Cases

Case 1: Wind Tower Production Line – A leading Chinese wind power manufacturer (500+ wind towers/year) used 8 ZT50 self-aligning rotators for 120m onshore wind tower segments. The auto-alignment function cut setup time by 40% (eliminating manual bolt adjustments), reduced labor intensity, and its stable rotation (speed error ≤ ±1%) improved weld consistency—lowering welding defects by 25% and boosting overall efficiency by 35%. The equipment has run continuously for over 3 years with no major failures, and the client ordered an additional 12 sets for their new line.

Case 2: Pressure Vessel Welding – A large European pressure vessel factory (specializing in boilers/reactors) installed 5 sets of AD30 adjustable rolls. Its manual+remote dual control and lead screw-driven spacing adjustment cut per-workpiece setup time by 60%, boosting production capacity by 40%, improving product qualification rate from 92% to 98%, and reducing labor costs by 30% and rework rates by 70%.

Case 3: Nuclear Pipe Precision Welding – A Southeast Asian nuclear power project used 3 PP20 pipe pinching rotators for precision nuclear pipe welding. The pneumatic clamping system ensured high concentricity (error ≤ 0.1mm/m), and remote control enhanced on-site safety. The equipment met strict nuclear industry standards (RCC-M), passed all acceptance inspections, and was recommended by the client to other regional nuclear projects.



UVP Module

1. Product Range Overview

ABK offers four core rotator series—self-aligning, adjustable, pipe pinching, and blasting/painting—with load capacities ranging from 1T to 1000T, covering all industrial scenarios from small precision workshops to super-heavy industrial projects. All products are CE and ISO 9001 certified, complying with global industrial safety and quality standards, and are fully compatible with mainstream automated welding systems (SAW, TIG, MIG, welding manipulators). We provide a one-stop solution for cylindrical workpiece rotation and processing, including product design, customization, production, installation, training, and after-sales service, ensuring that our clients’ production needs are fully met.

2. Rotator Type Comparison

Rotator Type	Core Advantage	Load Range	Key Application
Self‑Aligning	Auto-adjustment, no manual setup, high efficiency for mixed-batch production	6–50T	Wind towers, pressure vessels, large-diameter pipes
Adjustable	High rigidity, adjustable spacing, suitable for heavy-duty applications	10–60T	Heavy cylinders, structural steel, large storage tanks
Pipe Pinching	High concentricity, pneumatic centering, suitable for high-precision projects	5–100T	Nuclear pipes, precision pipelines, aerospace components
Blasting/Painting	Uniform surface treatment, anti-static, simple operation	5–20T	Sandblasting, anti-corrosion coating, surface treatment workshops

3. Application Cards

• Wind Power:ZT‑50 cuts setup time by 40% and increases production efficiency by 35%, reducing welding defects by 25% for wind tower segments.
• Pressure Vessel:AD‑30 reduces adjustment time by 60%, improving product qualification rates from 92% to 98% and reducing labor costs by 30%.
• Nuclear Power:PP‑20 meets strict industry precision and safety standards (RCC-M), with concentricity error ≤ 0.1mm/m for nuclear pipe welding.
• Surface Treatment:BP series delivers uniform coating and sandblasting results, eliminating uneven surface treatment and reducing rework rates by 70%.
• Shipbuilding:Heavy-duty models (50–200T) provide stable support for large marine components, improving work efficiency by 40% and ensuring structural strength.





Why Choose ABK Rotators

With 16 years of specialized experience in industrial welding equipment manufacturing, ABK has built a complete production system covering R&D, design, manufacturing, quality inspection, installation, and after-sales service. Combining professional mechanical design, rich on-site process experience, and strict quality control, we deliver reliable, long-lasting rotators to global clients. Unlike other manufacturers, we focus on solving real production pain points—long setup time, unstable rotation, and high maintenance costs—and create tangible value by helping clients reduce operational costs and boost production efficiency.

Core strengths

1. Full customization: Tailored to your workpiece size, load, processes, and environment—our R&D team provides bespoke solutions to ensure perfect integration with your production line.
2. CE & ISO 9001 certified: Complies with global safety and quality standards (ASME, GB150, RCC-M), enabling use in international projects and easy certification compliance.
3. Seamless compatibility: Integrates with existing welding systems and production lines without major modifications, protecting your equipment investment.
4. 5× safety factor & 24-hour operation: Ensures safety and reliability even in extreme conditions, with strictly tested key components for long service life.
5. Proven industry performance: Successful application cases in 30+ countries across wind power, pressure vessels, nuclear power, petrochemicals, and shipbuilding, with consistent client praise.
6. Global after-sales support: Professional team and overseas service points offer 24-hour technical support, on-site maintenance, and spare parts supply to minimize equipment downtime.
7. Mature supply chain: Cooperates with global top suppliers for key components (motors, inverters, bearings), ensuring stable quality and short lead times (7–15 days for standard models, 30–45 days for custom ones).
8. Professional R&D team: 10+ years of rotator design experience, continuously optimizing performance and user experience with advanced technologies (intelligent control, remote monitoring) to meet evolving industrial needs.

We don’t offer one-size-fits-all equipment. Instead, we work closely with you to understand your production pain points and needs, delivering tailored solutions that perfectly match your production line—helping you achieve higher efficiency, better quality, and lower operational costs.



Get a Quote

Share your specific requirements—workpiece weight, diameter, length, application industry, and process needs (welding, sandblasting, painting, etc.)—and our professional technical team will provide a free model recommendation, detailed custom solution, and official quote within 2 hours. We also offer value-added services: free on-site installation guidance, free operator training, and a 12-month warranty (with free spare parts replacement), ensuring smooth equipment operation from day one. Our team also provides long-term technical support to solve operational issues and optimize rotator usage.

Contact us via the website form, email, or hotline—we help you optimize welding efficiency, reduce operational costs, and stabilize product quality. Whether you need a standard model or a fully custom solution, ABK is your trusted welding rotator partner.
