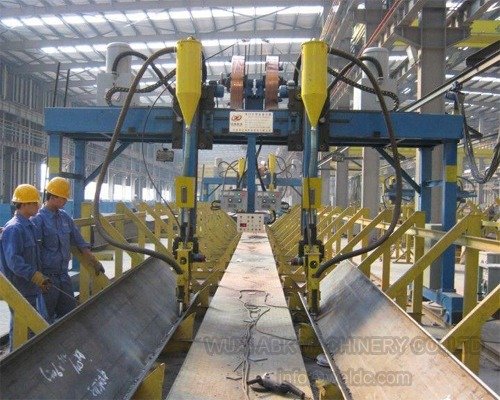

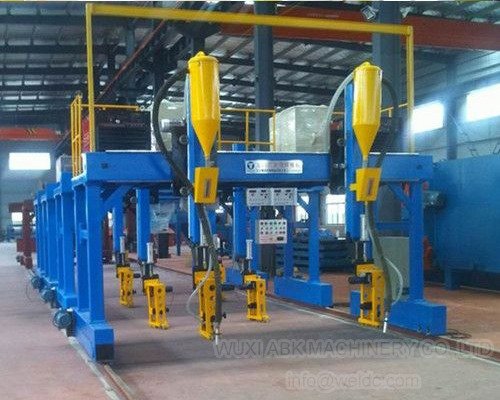

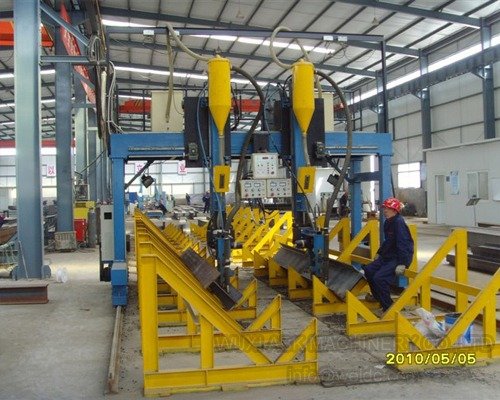

H-Beam Gantry Welding Machine

Description

H-Beam Gantry Welding Machine

The H-Beam Gantry Welding Machine is a fully automated, high-efficiency submerged arc welding (SAW) system designed specifically for continuous, high-precision longitudinal welding of H-shaped steel components. It integrates a heavy-duty mechanical structure, intelligent variable frequency drive (VFD) technology, an automatic flux circulation system, and a real-time seam tracking module—four core components working seamlessly to ensure consistent, reliable welding performance.

As a key electrical control technology, VFD (also called frequency conversion drive) adjusts motor speed by varying the operating power supply frequency, serving as the cornerstone of the equipment’s stable performance. Widely used in construction, shipbuilding, bridge engineering, heavy machinery manufacturing, and professional steel structure plants, this equipment effectively boosts production efficiency, reduces labor costs, ensures consistent welding quality, and is easy to operate in practical settings.



Overview

As a core automated tool in modern steel structure manufacturing, the H-beam gantry welding machine adopts SAW technology and a gantry-style moving structure, enabling double-sided synchronous welding of H-beam webs and flanges. Compared to traditional manual and semi-automatic welding, it offers distinct advantages in efficiency and stability, making it critical for advancing the industrialization and automation of steel structure production.

The machine comprises three core functional systems, each essential to the welding process:

• Variable Frequency Drive (VFD) Speed Control System: Enables stepless welding speed adjustment (0-1000mm/min), ensuring smooth operation and flexible adaptation to different materials (e.g., Q235, Q355 steel) and process parameters. Operators can easily adjust speed based on H-beam specifications without complex professional expertise.
• Automatic Flux Feeding, Conveying, and Recovery System: Automates flux supply, recycling, and filtering, reducing waste and production costs while improving the workshop environment by eliminating pollution from manual flux addition.
• Intelligent Seam Tracking System: Based on machine vision recognition, it detects weld seams in real time (±0.03mm accuracy) and automatically corrects welding gun alignment. This compensates for H-beam deformation during processing, eliminating manual adjustment errors and ensuring high welding precision.

Compared to traditional welding methods, the equipment offers three key benefits: 50%-80% higher production efficiency, reduced operator labor intensity and operational errors from long-term high-intensity work, and uniform weld appearance with a defect rate below 0.5% (well under the industry average). It operates stably in harsh industrial conditions (high temperatures, heavy dust) with low energy consumption, simple operation, and a long service life.

We provide personalized custom design services, adjusting gantry span, effective welding length, welding speed, number of welding guns, and power configuration to meet specific customer needs. To date, we have exported over 80 custom units to countries including Germany, India, and Brazil, supporting small, medium, and large H-beam production lines. All products undergo strict factory inspections, complying with GB/T 10045-2018 SAW standards and international industrial specifications to ensure long-term stable service.

Gantry SAW Welding Process

The equipment uses gantry-type SAW technology, a mature, efficient method for medium-thick plate (6-100mm) and structural component welding. It is recognized for stable performance and reliable quality, making it ideal for H-shaped steel welding in various load-bearing industrial scenarios.

Working Principle

SAW works by burning an electric arc beneath a layer of granular flux. The flux isolates the arc from air (preventing oxidation and nitrogen absorption), participates in deoxidation and desulfurization metallurgical reactions to enhance weld quality, reduces spatter and arc radiation, and ensures a safe working environment. Arc heat melts the base metal, welding wire, and flux to form a molten pool; upon cooling, it solidifies into a dense, high-strength weld (tensile strength ≥400MPa) meeting industrial load-bearing requirements.

Welding Process Flow

1. Workpiece Positioning: Place the H-beam on the support stand and calibrate to a 45° boat position (±0.5% error) using a level. This ensures smooth molten pool flow, full penetration, and avoids defects like incomplete penetration—even minor angle deviations can cause unstable welds and rework.
2. Torch Alignment: Use the intelligent seam tracking device to accurately align the welding torch with the weld seam, eliminating manual alignment errors and ensuring precision.
3. Automatic Flux Coverage: The equipment spreads flux evenly over the weld line (8-12mm thickness), protecting the arc and molten pool while reducing harmful impurities in the weld via metallurgical reactions.
4. Gantry Movement Welding: The gantry travels along the track at a set speed, with the wire feeding system synchronously supplying welding wire for continuous longitudinal H-beam welding. Gantry speed is adjustable to ensure weld consistency.
5. Flux Recovery: Unused flux is automatically recycled, filtered, and reused (≥90% recovery rate), saving materials (30% annual cost reduction) and reducing environmental impact. Inspect the flux recovery filter weekly to prevent clogging.
6. Weld Formation: The molten pool cools to form a smooth weld; the surface slag shell detaches automatically or is easily cleaned, reducing finishing work.

With a welding current range of 200–1000A (adjustable by H-beam thickness and base metal), the equipment suits various specifications and materials, delivering stable quality and 50%-80% higher efficiency than manual welding.



Models & Specifications

We offer three standard models to meet diverse production needs, with all technical parameters customizable to workshop conditions (complying with GB/T 10045-2018 standards) for flexibility and practicality. Each model is tailored to specific scenarios, enabling quick selection based on production scale.

Model	Gantry Gauge (mm)	Applicable H‑Beam Range (mm)	Welding Speed (mm/min)	Idling Speed (mm/min)	Wire Diameter (mm)	Power Supply	Total Power (kW)
AM‑HG‑4000	4000	Web 200–1500; Flange 200–800; Length 2000–12000 (Small/medium steel structure factories, small-batch, medium-spec H-beams)	300–600	3000	3.2–5.0	AC 380V, 50Hz, 3‑phase	10.5
AM‑HG‑5000	5000	Web 200–2000; Flange 200–800; Length 2000–15000 (Medium steel structure factories/shipyards, medium-batch, medium-large H-beams)	300–800	3000	3.2–5.0	AC 380V, 50Hz, 3‑phase	10.86
AM‑HG‑6000	6000	Web 200–2500; Flange 200–800; Length 2000–18000 (Large steel structure factories/bridge plants, large-batch, heavy-duty H-beams)	300–900	3000	3.2–5.0	AC 380V, 50Hz, 3‑phase	11.2

Note: Track length, welding power, flux recovery system, and control mode can be customized to meet actual needs (GB/T 10045-2018 compliant). For detailed technical parameters, contact our foreign trade specialist to obtain the official Spec Sheet.

Multi‑Head Configurations

We offer three common welding head configurations to match diverse efficiency needs, aligning with the applicable ranges of our standard models for flexible selection based on production scale and workpiece specifications.

Single Torch Configuration

Ideal for small-batch production and small-to-medium enterprises (matching AM-HG-4000), it features one high-precision welding gun that sequentially welds two longitudinal seams (300-600mm/min single-seam efficiency). Its simple structure, easy operation, low investment, and convenient maintenance make it cost-effective for enterprises new to H-beam production or with small-batch needs.

Dual Torch Configuration

The most widely used industrial configuration (matching AM-HG-5000), it has two independent welding guns for simultaneous welding of flange-web longitudinal seams. Efficiency is 85%-95% higher than single-torch (300-800mm/min), with independent adjustment of each gun’s position, angle, and parameters to ensure consistent quality for various H-beam specifications—ideal for medium-to-large manufacturers with high production volumes.



Tandem Torch Configuration

Designed for heavy-duty, large-scale H-beam welding (matching AM-HG-6000), it uses two+ tandem guns for one-time multi-layer, multi-pass welding. Efficiency is 3-4 times that of single-torch (300-900mm/min), with an intelligent synchronous control system reducing deformation (≤0.3mm/m) and enhancing weld load-bearing capacity (≥450MPa).

All welding guns include automatic seam tracking (machine vision-based), detecting seams in real time and adjusting alignment to ensure ±0.05mm precision and a rework rate <0.5%—a core advantage over competitors. This function saves labor by eliminating the need for dedicated torch monitoring and adjustment.

Applications

The H-Beam Gantry Welding Machine is widely used in industrial fields requiring high-quality H-beam welding, with specific scenarios as follows:

Construction Industry

Used for H-beam welding in steel structure workshops, high-rises (≥30 floors), large-span stadiums, and exhibition centers. We supplied 30 AM-HG-6000 (tandem torch) units to a large German steel structure enterprise, increasing production capacity by 60% and achieving a 99.5% welding qualification rate for high-rise main beams.

Shipbuilding Industry

Welds H-beams in hulls, decks, and cabins (key marine components), meeting strict quality and corrosion resistance standards (GB/T 19292.1-2018). An Indian shipyard used the AM-HG-5000 (dual torch) for hull deck thick-plate welding, raising the qualification rate from 88% to 99.2% and cutting rework costs.

Steel Structure Manufacturing

Produces H-beams for frames, trusses, and platforms, improving efficiency by 50%-80% and reducing annual labor costs by 40%. A medium domestic steel structure factory saved nearly 200,000 yuan annually and increased capacity by 55% with the AM-HG-4000.

Heavy Machinery Manufacturing

Welds H-beams in crane, excavator, and loader frames, booms, and bases (up to 500t load). Our equipment extends average machinery service life by 30% by ensuring strong, stable welds, reducing maintenance and replacement costs.

Other Fields

Also used in bridge construction (main beams), power plant construction (steel structure supports), and chemical equipment (corrosion-resistant H-beams), with models and configurations tailored to industry-specific needs.



FAQs

Q1: What is the machine’s service life?

A1: Under normal use and regular maintenance, service life is 8–10 years. We use high-strength Q355 steel and German-imported core components (annual failure rate <2%); the gantry frame undergoes precision machining and anti-corrosion treatment (galvanizing + spray painting) for durability in harsh conditions. Regular maintenance guidance and spare parts supply further extend service life.

Q2: Can the machine be customized?

A2: Yes—customization is a core strength. We tailor equipment to H-beam specifications (web height, flange width, length), welding speed, gantry span, gun configuration, and power parameters. For example, extra-long H-beams (>18000mm) can be accommodated by extending the track and adjusting power. Professional solutions are provided within 48 hours of receiving detailed requirements.

Q3: What after‑sales services are provided?

A3: Comprehensive after-sales support includes: 1) Free on-site installation, commissioning, and operator training by technicians with ≥5 years of experience; 2) 12-month quality warranty (free maintenance/replacement for manufacturing defects), with 72-hour domestic/7-day foreign on-site response; 3) 24-hour online technical consultation; 4) Timely spare parts supply (3-5 days for common parts, 15-20 days for custom parts).

Q4: What are the core advantages?

A4: Five key advantages over competitors: 1) High precision (0.1mm welding precision, ±0.05mm tolerance, rework rate <0.5%, 15-20% rework cost savings); 2) High efficiency (dual/tandem torches + ≥90% flux recovery, 30% average efficiency boost); 3) Stability (annual failure rate <2%, verified by long-term industrial use); 4) User-friendly design (intuitive interface, 3-5 day training cycle); 5) Cost-effectiveness (10-15% lower price than imported alternatives, customizable for diverse needs).

Q5: Is operator training provided?

A5: Yes, free training is standard. Technicians conduct on-site training during commissioning, covering equipment structure, operating procedures, parameter adjustment, daily maintenance (e.g., weekly flux filter inspection), and fault troubleshooting. A post-training assessment ensures operators can proficiently use the equipment and resolve common issues independently.

UVP Module

• Spec Sheet: Includes detailed technical parameters, structural drawings, and performance indicators (GB/T 10045-2018 compliant) to aid model selection. Contact our foreign trade specialist for the high-definition Spec Sheet and free one-on-one parameter interpretation.
• Welding Head Configuration Diagram: Clearly illustrates the structure, installation, and working principle of single/dual/tandem torch configurations (with dimensions and parameters), simplifying selection. Contact our sales team to obtain it for free.

If you have questions about the H-Beam Gantry Welding Machine, or need a quotation, customized solution, or sample test, please feel free to contact us. We will respond within 24 hours to help you select the optimal equipment and configuration.
