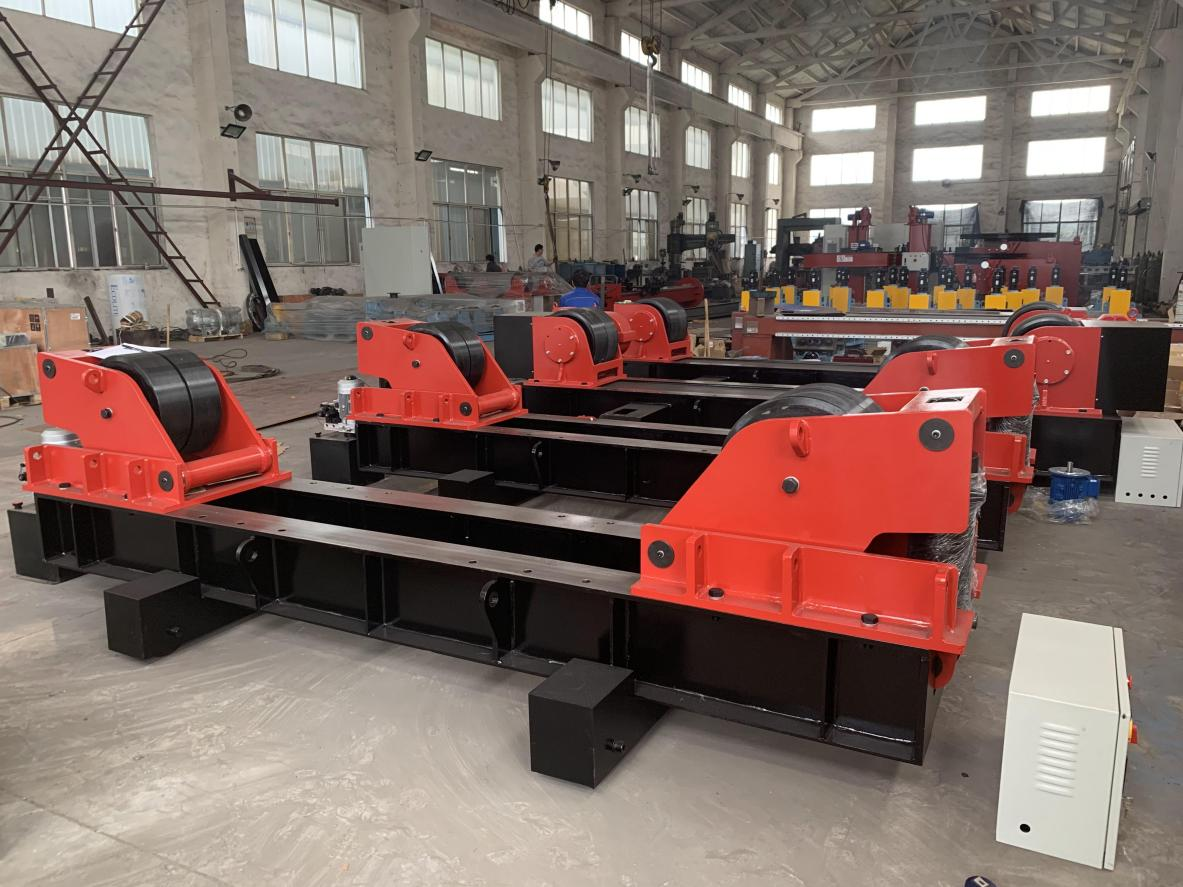

Fit-Up Rotator

Overview

As advanced industrial equipment, the Fit-Up Rotator is specially designed for the high-precision alignment and assembly of cylindrical workpieces, including storage tanks, pressure vessels, pipelines, and wind tower segments. Its key strengths are high-precision hydraulic regulation and stable load-bearing performance, setting it apart from standard machinery. It has become indispensable core equipment for manufacturers of pressure vessels and wind energy components, with irreplaceable value in these fields.

Compared with traditional assembly methods, this unit adopts advanced hydraulic transmission, eliminating safety hazards from manual handling and inefficiencies caused by repeated lifting and adjustment. It transforms labor-intensive manual alignment into intelligent automated operation, significantly reducing labor intensity and improving actual production efficiency.

Designed to optimize the pre-welding alignment process, the Fit-Up Rotator effectively ensures workpiece concentricity, lowers labor costs, and enhances on-site operational safety. It is widely applied in key industries such as pressure vessel manufacturing, oil and gas exploration, wind energy, and chemical storage, serving as essential equipment for improving production quality and efficiency.

Different from standard welding rotators, the Fit-Up Rotator concentrates on the critical pre-welding alignment stage, enabling operators to perform high-precision three-dimensional workpiece adjustments. Its structure balances adjustability and stability: a robust frame and high load capacity support heavy cylindrical parts, while flexible adjustment mechanisms accommodate various diameters and non-standard workpieces. It performs reliably in both small workshops and large industrial plants, laying a solid foundation for its hydraulic system design and practical applications.

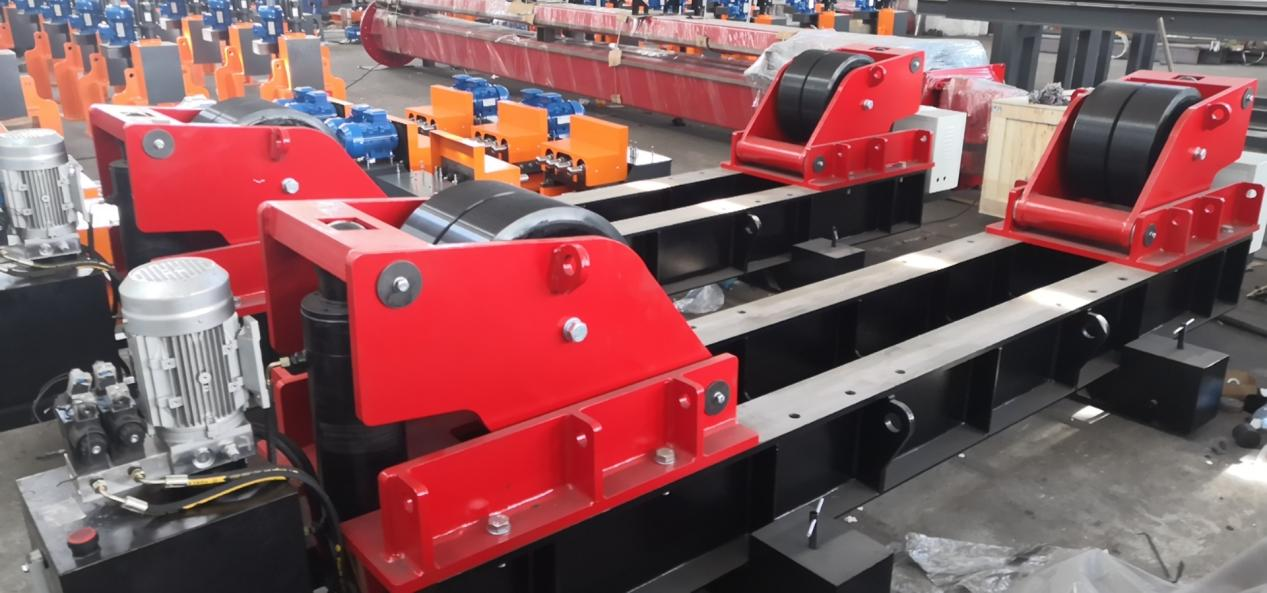

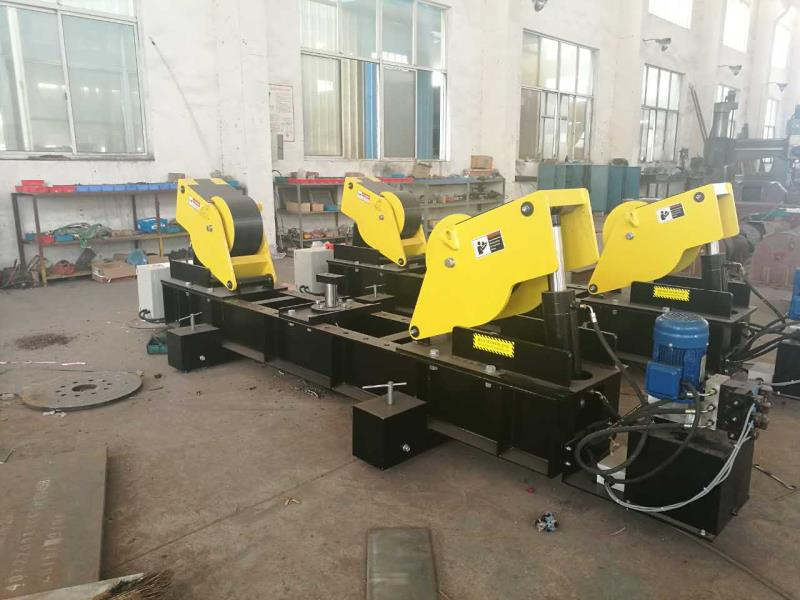

Hydraulic Fit-Up System

The Hydraulic Fit-Up System serves as the core of the Fit-Up Rotator, based on Pascal’s law of fluid mechanics. It uses hydraulic oil pressure to transmit power and amplify force, enabling precise workpiece positioning. This proven hydraulic technology ensures outstanding stability and reliability in long-term industrial operation. The system comprises four main parts: a hydraulic power unit, hydraulic cylinders, control valves, and auxiliary components (oil tank, filter, and pipelines). The oil tank stores hydraulic fluid, the filter prevents contamination and component wear, and pipelines ensure smooth oil delivery. Their coordinated performance directly determines accurate alignment and stable daily operation. The hydraulic pump converts electrical energy into stable hydraulic pressure, supplying high-pressure oil to the cylinders in the roller bed. Each roller group features an independent hydraulic cylinder, allowing operators to lift, lower, and horizontally position workpieces. This effectively corrects hi-lo mismatch and gap issues between cylindrical sections, solving common on-site alignment challenges. Control valves manage oil flow direction, pressure, and rate for precise adjustment. Auxiliary parts maintain oil cleanliness and system temperature, supporting long service life. Key advantages include ±0.5mm positioning accuracy, 3D adjustment, and flexible synchronous or independent cylinder control, giving the equipment a strong market edge. This hydraulic system eliminates manual alignment errors, reducing fit-up time from hours to minutes. It ensures consistent joint quality, lays a reliable foundation for high-quality welding, improves workpiece service life, and significantly boosts overall production efficiency.

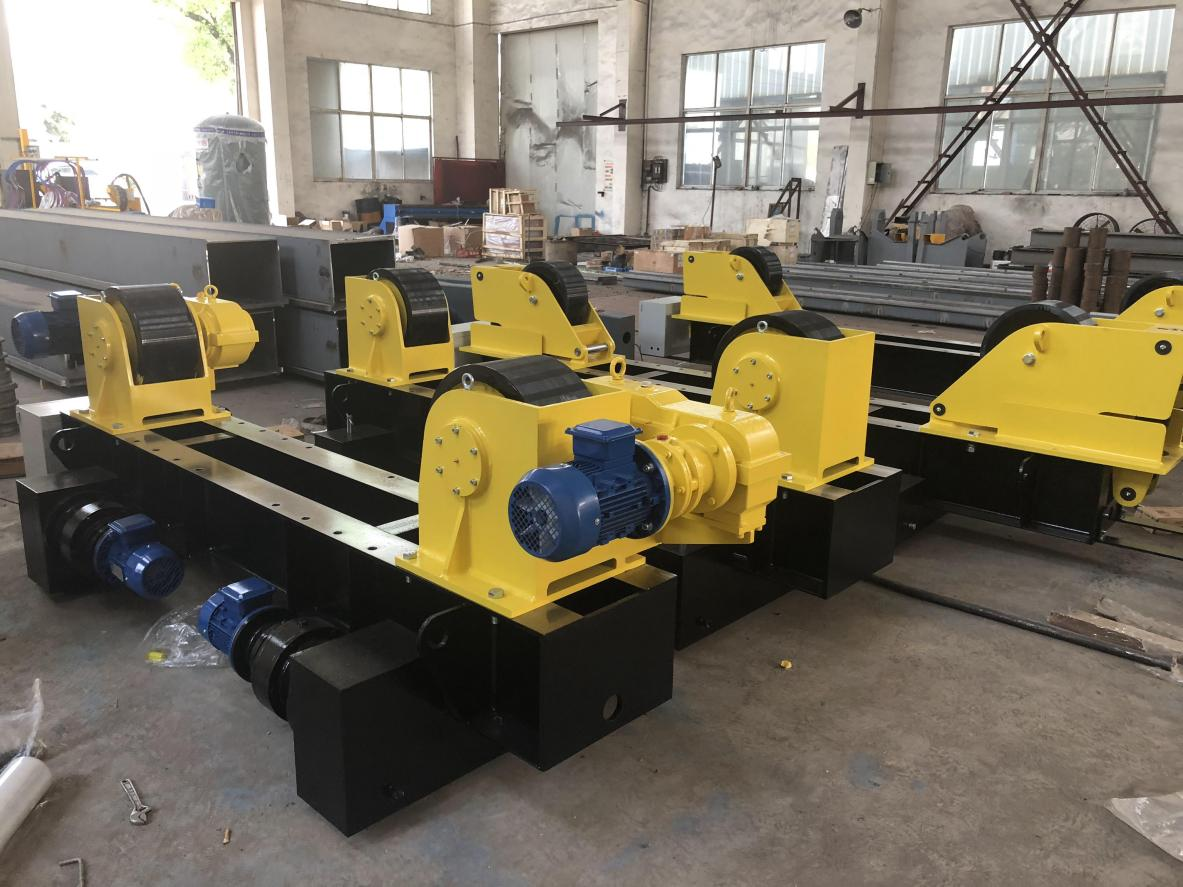

Models & Specifications

To meet the diverse industrial needs of different enterprises, our Fit-Up Rotator comes in multiple models, covering light-duty, medium-duty, and heavy-duty application scenarios. Enterprises can select the appropriate model based on their production scale and workpiece specifications, and each model can be customized according to specific requirements such as load capacity, workpiece diameter, and operation mode—tailored entirely to your actual production needs for workpiece size, load, and operational habits. These standard parameters also provide a solid basis for customizing the large-tonnage models mentioned later, ensuring customization aligns with practical production demands.

All models have passed CE/ISO certification, fully complying with international quality and safety standards, so enterprises can use them with complete confidence. The detailed parameters of standard models are shown in the following table (Table 1: Detailed Parameters of Standard Fit-Up Rotator Models), which provides a clear reference for enterprises to understand product performance and make procurement decisions—you can easily find the information you need from the table.

Model	Max Loading Capacity (tons)	Suitable Workpiece Diameter (mm)	Wheel Size (mm)	Motor Power (kW)	Roller Linear Velocity (m/h)	Track Inner Distance (mm)	Adjustment Mode
HGKF-40	40	2000-4800	400×120	3	6-60	1200	Hydraulic 3D Adjustment
HGKF-60	60	2500-5000	520×250	4.5	6-60	1800	Hydraulic 3D Adjustment
ZDG-100	100	3000-10000	800×800	2×11	6-60	2000	AC Variable-Frequency Stepless Speed-Regulating
HGZ-20	20	500-3500	350×120	1.5	6-60	1700	Hydraulic Up/Down Adjustment

All models are equipped with polyurethane (PU) wheels, which offer excellent wear resistance, oil resistance, and stability. They also come with metal clamps to effectively extend the service life of the wheels and reduce the overall operating cost of the equipment. Additionally, all models feature frequency conversion control, which enables stepless speed regulation for smooth rotation, saves energy, and adapts to different workpiece rotation speed needs; the emergency braking system fully ensures operator safety. For large-scale offshore and wind tower manufacturing, we also offer custom models with a load capacity of up to 2000 tons—far exceeding the load capacity of standard models—to meet the special assembly needs of large, heavy workpieces.

Tank & Vessel Applications

The Fit-Up Rotator is widely used in the fabrication and assembly of tanks and vessels, mainly solving the key problem of precise alignment during cylindrical workpiece assembly. In the tank and vessel manufacturing industry, alignment accuracy directly impacts product quality and service life. The hydraulic adjustment capability of the Fit-Up Rotator makes it an ideal choice for assembling storage tanks, pressure vessels, chemical reactors, wind tower segments, and other products—ensuring joint concentricity and gap consistency, which are critical to structural integrity and the long-term service performance of workpieces.

Below is a real tank alignment case that demonstrates the actual performance and application value of the Fit-Up Rotator. This case comes from a large oil and gas storage equipment manufacturer and is highly representative in the industry—you can use it as a useful reference for your own production if you have similar needs.

Tank Alignment Case Study: Large-Scale Storage Tank Fabrication

Client Case

Client Profile

A leading oil & gas storage equipment manufacturer, specializing in large carbon steel storage tanks. The target project was a standard industrial 500m³ storage tank with an 8m diameter and 10m height.



Challenge

Previously, the client used manual alignment for tank shells. Each section required 4–6 workers and over 8 hours to meet concentricity requirements. This method was inefficient, labor-intensive, and costly. Manual adjustment frequently caused misalignment (up to 3mm) and uneven gaps, leading to rework, longer welding cycles, and higher expenses. Frequent manual lifting also created serious safety hazards, restricting overall production efficiency.

SolutionAfter detailed demand analysis, the client selected our HGKF-60 Fit-Up Rotator (60-ton load capacity) with 3D hydraulic adjustment and laser positioning, fully matching large tank assembly requirements. We also integrated the unit with their existing welding manipulator to form an efficient fit-up-welding production line.



Implementation Process



1. Place the first tank section on the drive and idler rotators.
2. Position the second section on the hydraulic fit-up rotator for preliminary fixing.
3. Use wireless remote control to adjust hydraulic cylinders, correcting vertical and horizontal misalignment to within ±0.5mm.
4. Fine-tune the butt gap to 3–5mm for optimal welding.
5. Perform tack welding, then complete full welding with the welding manipulator.
6. Repeat the process for remaining sections until tank assembly is finished.



Results



• Assembly time per section reduced from 8+ hours to 45 minutes
• Labor cost decreased by 60%
• Misalignment fully controlled within ±0.5mm, rework reduced by 90%
• Zero lifting-related safety incidents
• The 500m³ storage tank project completed 2 weeks ahead of schedule

This case clearly demonstrates the efficiency, quality, and safety value of the Fit-Up Rotator in large storage tank manufacturing.

FAQs

Q1: What is the difference between a Fit-Up Rotator and a standard welding rotator?

A1: The main function of a standard welding rotator is to rotate workpieces during welding to ensure uniform weld seams. In contrast, the Fit-Up Rotator is primarily used for pre-welding alignment. Put simply, one is used during welding, and the other during pre-welding alignment. The Fit-Up Rotator is equipped with a dedicated hydraulic adjustment system, which can correct workpiece misalignment, adjust gap widths, and ensure workpiece concentricity—features that standard welding rotators do not have. It makes the pre-welding alignment process faster, safer, and more accurate, laying a solid foundation for subsequent high-quality welding.

Q2: What workpiece sizes can the Fit-Up Rotator handle?

A2: Our standard models can handle workpieces with diameters ranging from 500mm to 10,000mm and load capacities from 20 tons to 100 tons, fully meeting the production needs of most small and medium-sized enterprises. For large-scale offshore or wind tower manufacturers that process larger and heavier workpieces (exceeding the range of standard models), we offer custom models with a load capacity of up to 2000 tons and a workpiece diameter of up to 15m—these models perfectly match the assembly needs of large-scale, heavy-duty workpieces.

Q3: How precise is the hydraulic adjustment system?

A3: The hydraulic adjustment system has a positioning accuracy of ±0.5mm, which can accurately correct workpiece edge misalignment and gap widths. From an industrial production perspective, this accuracy fully meets the alignment requirements for high-quality welding, effectively reducing rework caused by inaccurate alignment and improving welding quality and production efficiency.

Q4: Is the Fit-Up Rotator easy to operate?

A4: The equipment is designed with user-friendliness in mind and is very easy to operate. It comes with a wireless remote control (with a control range of up to 30m) or a pendant controller, allowing operators to make adjustments from a safe, convenient position. Additionally, the control interface is intuitive and simple—workers can master basic operations after a short training session, with no professional technical background required.

Q5: What maintenance is required for the Fit-Up Rotator?

A5: Daily maintenance of the equipment is relatively simple, mainly covering four aspects: first, regularly check the hydraulic oil level to ensure it stays within the standard range; second, clean the filter regularly to prevent pipeline blockages caused by impurities; third, inspect PU wheel wear and replace the wheels promptly if they are severely worn; fourth, lubricate moving parts regularly to ensure smooth operation. The equipment is built for durability, with an annealed steel base to prevent deformation and imported core components for a long service life. We also provide 24-hour technical support and an 18-month warranty for standard models, so you can use the equipment with peace of mind.

UVP Module

To help you better understand and use the Fit-Up Rotator, we provide two core resources. These resources help you quickly grasp the equipment’s technical parameters and structural principles—consistent with the model specifications, hydraulic system introduction, and maintenance requirements mentioned earlier—supporting model selection and daily operation, and they’re very practical for enterprises.

1. Spec Sheet: You can download the complete specification sheet, which includes detailed technical parameters, model options, and customization capabilities of the equipment. It covers key information such as load capacity, adjustment range, motor parameters, and safety performance, helping you select the most suitable model according to your production needs and providing a reliable reference for procurement decisions.
2. Hydraulic System Diagram: You can obtain the equipment’s hydraulic system diagram, which clearly shows the component layout, oil flow path, and control mechanism of the hydraulic system. For maintenance personnel and on-site operators, this diagram is highly practical—it helps quickly troubleshoot faults and optimize system performance, saving a lot of time and effort in daily maintenance.

If you need these two resources, or if you want to discuss custom solutions based on your specific application needs, please contact our technical team directly via email or on-site consultation. We will provide professional answers and solutions to help you use the equipment more effectively and improve production efficiency.
